AUTOMEDX SAVe SIMPLIFIED AUTOMATED VENTILATOR

automedx save ventilator 600x10
SAVe Operators Manual – Click Here

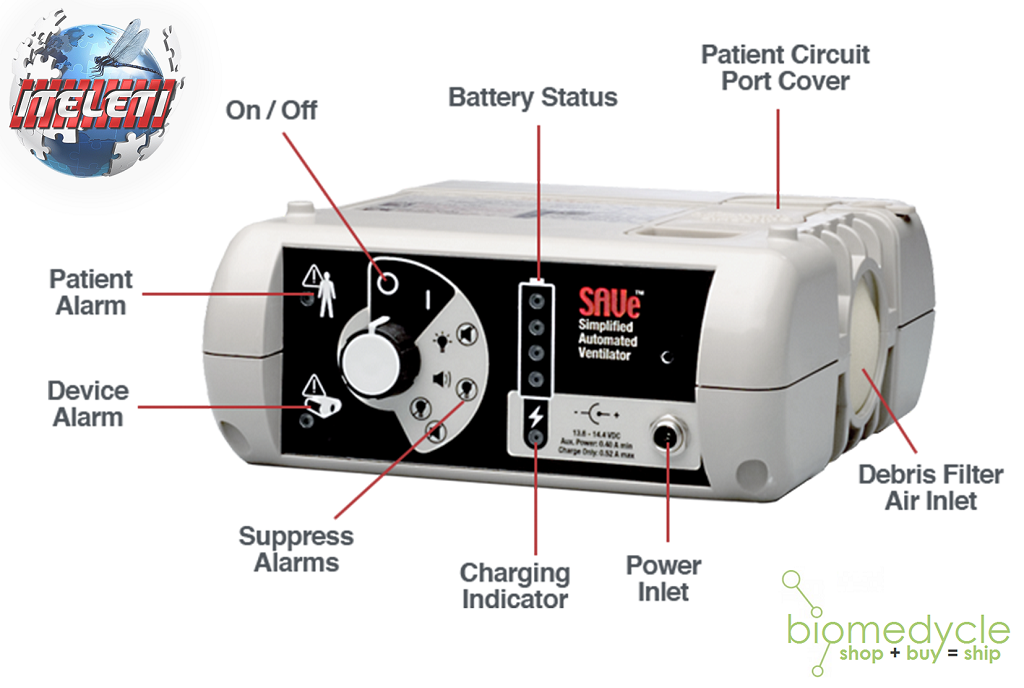

AutoMedx SAVe Simplified Automated Ventilator 600X10 NSN # 6515-01-581-8155

The device addresses the dangers associated with bagging patients and frees up a responder to address other injuries, perform compressions, attend to other patients or further assist in transporting the patient.

The SAVe is a hands free, compact, lightweight and solid ventilator with alarms and safety features, not found elsewhere at its price. It uses a pump to deliver a 600ml tidal volume and fixed respiratory rate of 10BPM, in compliance with the American Heart Association, reducing operator error and eliminating the guesswork associated with bagging a patient.

The SAVe accepts supplemental low pressure oxygen but does not require compressed gas to ventilate the patient. Ventilation can be provided through the included mask or the SAVe can be connected directly to an endotracheal tube or other airway adjunct. The SAVe operates up to 5.5 hours on a single battery charge and may be recharged from a standard AC outlet. It’s a set flow, time cycled, volume targeted, pressure limited (38 cmH2O) device. The SAVe is perfect for the needs of field medics, mass casualty incident coordinators and EMS professionals.

*** IN STOCK AND READY TO SHIP ***

STANDARD PACKAGE WITH ACCESSORIES INCLUDE

  • SAVe Ventilator (NSN 6515-01-560-7288)
  • Hard waterproof carrying Case
  • Patient Breathing Circuit single use (99cm Long)
  • Debris Filter
  • Medium Adult Patient Mask
  • Power Charger (100-240 / 50/60Hz)
  • Oxygen Tubing
  • Head Restraint Strap
  • User Manual

FREE Training Slides for the AutoMedx SAVe Simplified Automated Ventilator

The ventilator is completely self-contained, weighs only 3 pounds and does not require a compressed gas source. It can be used with a mask or a secure airway. Low pressure supplemental oxygen can be used if desired. The SAVe will deliver ambient air for up to 5.5 hours on a single battery charge and may be recharged from a standard AC outlet. It is a set flow, time cycled, pressure limited (38 cmH2O) device.



Parameters:

Ventilation Mode: Positive Pressure ventilation
Tidal Volume: 600ml
FIO2: Ambient air (21%) or supplemental oxygen (21 to 62%) Peak Inspiratory
Pressure: 38cmH20
Inspiratory / Expiratory Time: 2.25 seconds / 3.85 seconds
Breathing Rate: 10BPM (fixed)
Alarms: Low pressure (disconnect), High pressure (blockage) and Low battery.
Alarm Mute: Yes (on – off switch)
Operating Time: 5.5 Hours on Lead – Acid rechargeable battery or continuous on AC power
Dimensions: 16.5 x 16.9 x 6.3cms
Weight: 1.3kgs (Ventilator)

The AutoMedx SAVe Simplified Automated Ventilator 600X10 (SAVe) mitigates the potential for injury, reduces operator error, complies with guidelines and improves a medical responder’s ability to perform other critical task. It is ideally suited for situations where the use of pressurized gas is inadvisable or unavailable, or where size, weight, ease of use and portability are a consideration. Forward deployed field medics, mass casualty incident coordinators within the Department of Homeland Security and EMS professionals will find the device well suited to their needs.

Iteleti ReMed - SAVe Ventilator Overview

Success Stories

  • Afghanistan Battlefield
  • The AutoMedx SAVe was used post operatively in Kenya Kenya
  • South African Dignitary Evacuation

Benefits and Features:

Easy to Use:
• Single knob operation
• Low Training Requirements
• Hands-Free

Versatile:
• Allows Spontaneous Breathing
• The AutoMedx Save Accepts Up to 6LPM of supplemental O2
• Powered by Rechargeable Lead-Acid Battery or Electrical Outlet

Safe:
• Single Tidal Volume and Respiratory Rate Reduces Chance of Operator Error
• Tidal Volume = 600 mL
• Breaths / Minute = 10
• EtCO2 Detector
• No Compressed Gas Required to Operate the AutoMedx SAVe Ventilator

Intelligent Design:
• Detects Blockage and Disconnects
• Fail-Safe Mechanisms and Visual/Audible Alarms
• Up to 5.5 Hours per Charge

Use the AutoMedx SAVe Ventilator Anywhere:
• Rugged, Compact Design (6.5 x 6.25 x 2.5 inches)
• Long shelf life and durability
• Lightweight (3.1 pounds)
• Self-Contained

PURCHASE USING PAYPAL SECURE SITE – JUST CLICK BELOW

$599.00 Each FREE S&H
